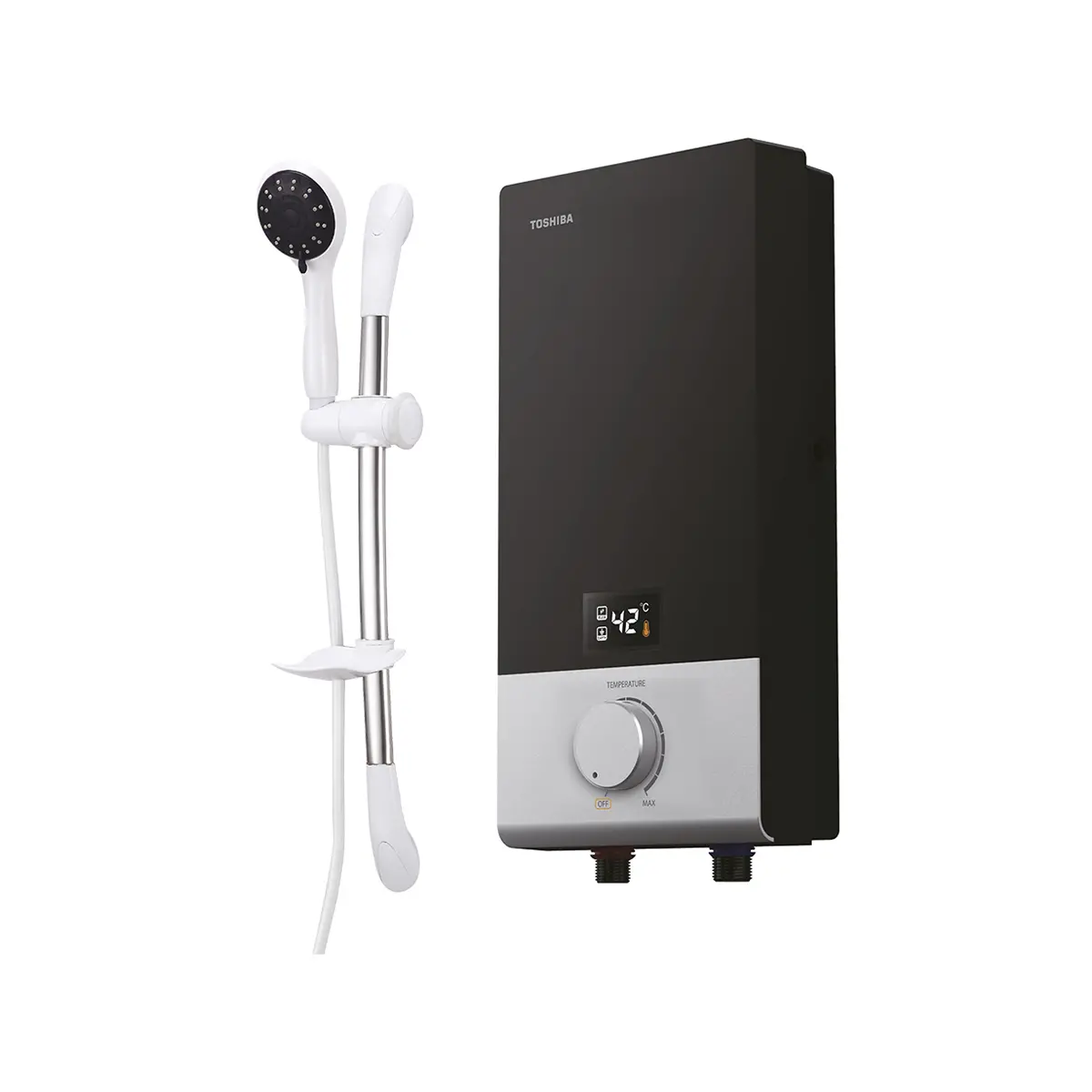

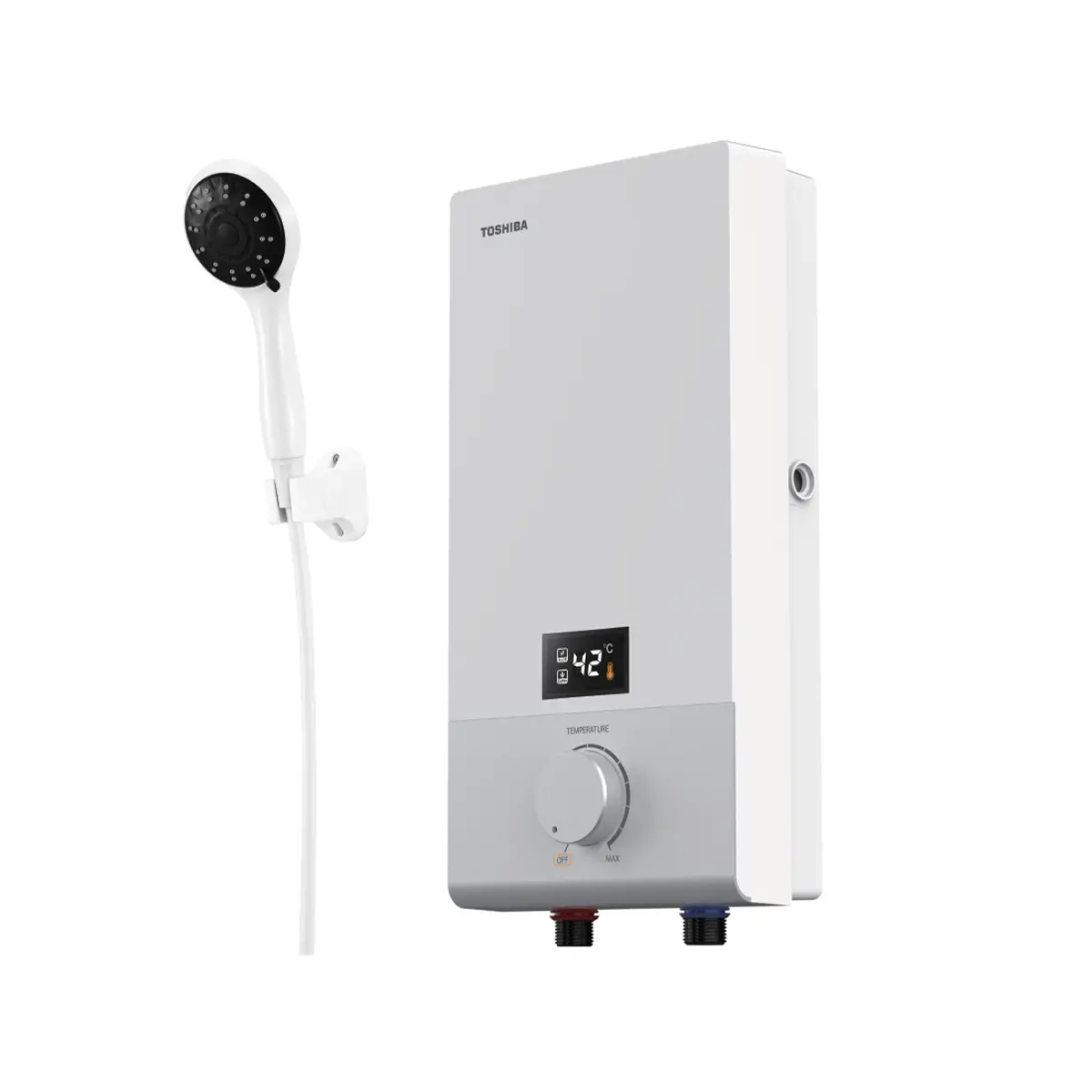

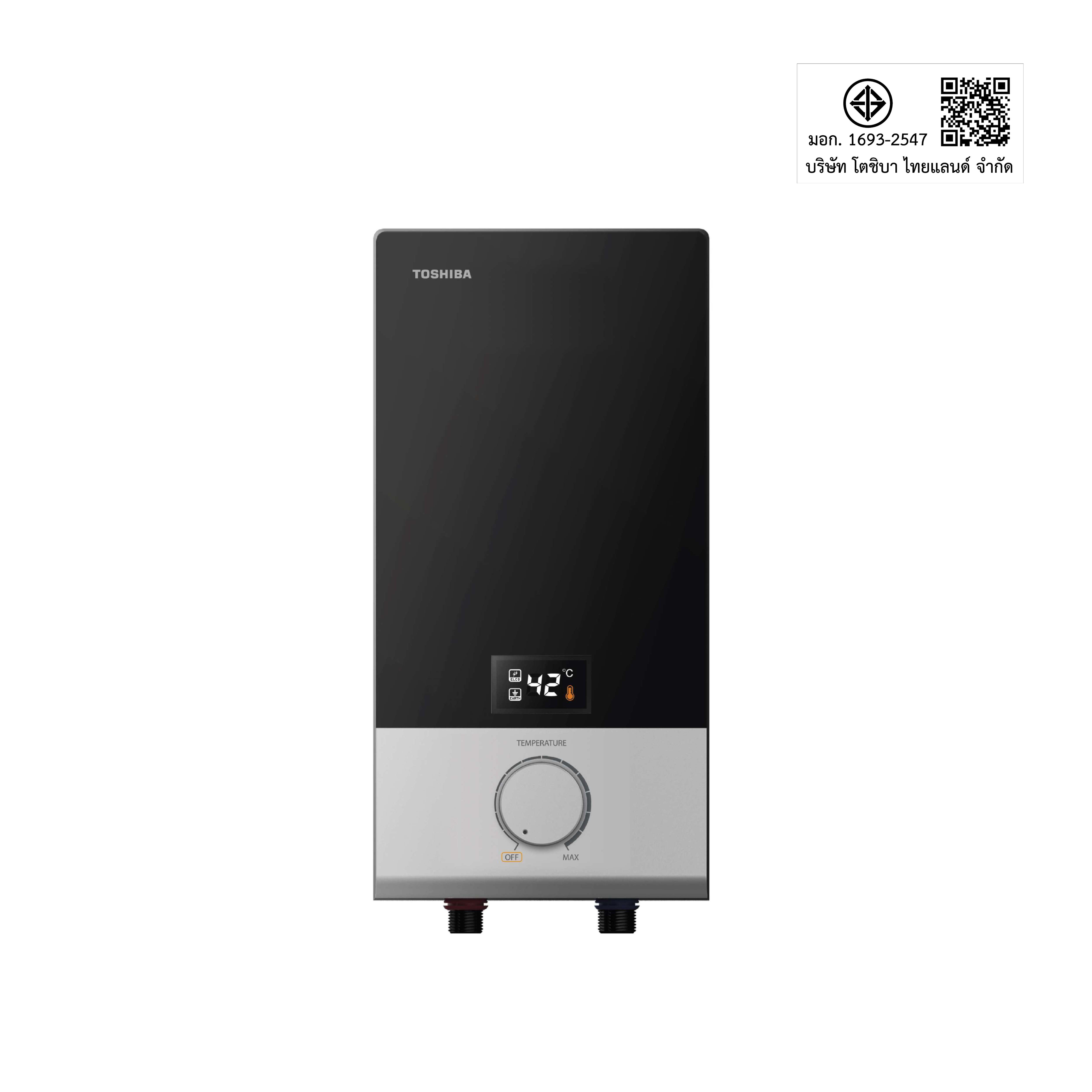

Water Heater DSK38ES5
Water Heater DSK38ES5
Water Heater DSK38ES5
Water Heater DSK38ES5
Water Heater DSK38ES5
Relaxed with comprehensive safety systems.
  • Rest assured with international ELCB standard.

  • Reliable with auto inlet-pressure sensor.

  • Relieved with auto ground check circuit.

  • Whirl Water Flow system for better tank water circulation.

  • LED Display show and adjust to your preferable temperature.

  • The water heater will be activated only when the earth wire is well-connected.

  • Double Copper Heating Element.

  • Splash-proof IP25 Standard.

Black
3800
Power Consumption (Watt)
220V
Power Supply
200x97x400
Dimension (W)x(D)x(H) (mm.)
1.95
Net Weight (kg.)
ระบบ Whirl Water Flow
Whirl Water Flow
Whirl Water Flow system

This allows better tank water circulation, faster temperature rising, and stabilize water temperature while enjoying your time.

มาตรฐาน IP25
IP25 Standard
Splash proof IP25 Standard

The IP25 splash-proof protection, as the first shield, against water seepage into the heater’s interior, effectively avoids short circuits at the first step.

มั่นใจ
Rest assured
Rest assured

with international ELCB standard to cut off the circuit when stray voltages detected within specified interval.

อุ่นใจ หายห่วง
Relieved & Reliable
Relieved & Reliable

Reliable with auto inlet-pressure sensor, it will not start if low or insufficient water flow rate is detected to prevent from too high water temperature. Relieved with “Safeguard”, proprietary auto ground check circuit from TOSHIBA. To check the ground line connection and detect any abnormalities.

ควบคุมอุณหภูมิได้ง่ายขึ้น
Temperature control
Temperature control

Relaxed on your own preferences with smart LED Display to precisely show temperature level and operation status.

SPECS
Specification
Power Consumption (Watt)
3800
Power Supply
220
LED Light (ELCB)
LED Display
Dimension (W)x(D)x(H) (mm.)
200x97x400
Net Weight (kg.)
1.95
Water Lower Pressure (MPa)
0.30
Color
Black/White
Switch On/Off
Autometic Themostat
Light of Temperature Control
LED Display
Lead Sensor (Swift of Water Pressure)
Warranty
2 year product warranty and 5 years heater warranty
Remark
Specifications are subjected to change without prior notice and responsibility due to an error in the typing in anyway.
