TOSHIBA 1.5 HP / 1 HP Split Type Air-Conditioner (Multi System Inverter Heat Pump Series) RAS-M13N4KV-RAS-M10N4KV

Cancel Language Confirm
TOSHIBA 1.5 HP / 1 HP Split Type Air-Conditioner (Multi System Inverter Heat Pump Series) RAS-M13N4KV-RAS-M10N4KV
RAS-M13N4KV-RAS-M10N4KV
pdp-ras-m13n4kv-ras-m10n4kv-1-3000x3000
pdp-ras-m13n4kv-ras-m10n4kv-2-3000x3000
pdp-ras-m13n4kv-ras-m10n4kv-3-800x800
pdp-ras-m13n4kv-ras-m10n4kv-4-800x800
pdp-ras-m13n4kv-ras-m10n4kv-1-3000x3000
pdp-ras-m13n4kv-ras-m10n4kv-2-3000x3000
pdp-ras-m13n4kv-ras-m10n4kv-3-800x800
pdp-ras-m13n4kv-ras-m10n4kv-4-800x800

RAS-M13N4KV-RAS-M10N4KV

TOSHIBA 1.5 HP / 1 HP Split Type Air-Conditioner (Multi System Inverter Heat Pump Series) RAS-M13N4KV-RAS-M10N4KV
  • Dry and Cozy Environment
  • 2 Rooms Model Design
  • Ultra Pure Filter Prevent Bacteria and Virus
  • Automatic Double Clean System
  • Inverter Heat Pump System Quiet and Energy Efficient
Others
Feature
Dry and Cozy Environment

Dry and Cozy Environment

The air-conditioner features Dry Operation and is particularly suitable for the wet weather in Hong Kong, getting rid of high humidity indoors effectively, preventing mold from growing and hence making your home clean and dry.

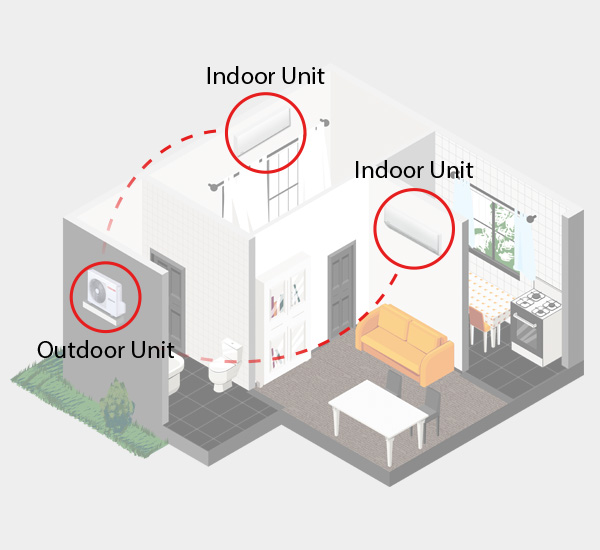

2 Rooms Model Design

2 Rooms Model Design

The 2 Rooms Model Design (One generator for Two air-conditioners) is perfect for small living spaces in Hong Kong. Being easy for installation, the air-conditioner is the perfect choice for every family.

Ultra Pure Filter Prevent Bacteria and Virus

Ultra Pure Filter Prevent Bacteria and Virus

The air-conditioner equips with Ultra Pure Filter, getting rid of PM2.5, bacteria and virus, purifying indoor air effectively, enhancing air quality, preventing bacteria or virus from developing in the air-conditioner and hence protecting your family.

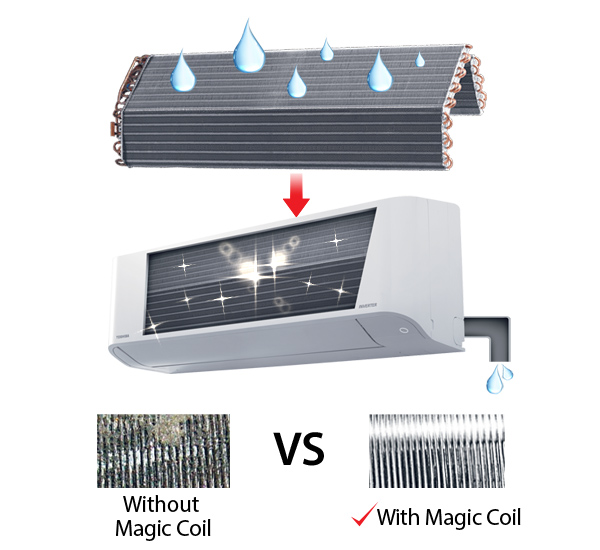

Automatic Double Clean System

Automatic Double Clean System

Equipped with a Double Clean System, the air-conditioner uses resin hydrophobic coating and automatic cleaning function to greatly minimize the chances of having dust and moisture buildup inside the air-conditioner. The inside unit of the air-conditioner is always clean and dry, preventing mould from developing.

Inverter Heat Pump System Quiet and Energy Efficient

Inverter Heat Pump System Quiet and Energy Efficient

Multi System Inverter Heat Pump Series Split Type Air-conditioner uses Hybrid Inverter System, being quiet and energy efficient. It can deliver cool air and heat and maintain the room temperature after reaching the target temperature, avoiding fluctuation and hence creating a comfortable home.

Specs
Horse Power & Size
Indoor Unit Model
RAS-M13N4KV/RAS-M10N4KV
Horse Power
1.5 HP/1 HP
Indoor Unit Model Dimension HxWxD(mm)
293x798x230
Indoor Unit Model Dimension HxWxD(inch)
11.5x31.4x9.1
Outdoor Unit Model
RAS-2M18S3AV-E
Outdoor Unit Model Dimension HxWxD(mm)
630x800x300
Outdoor Unit Model Dimension HxWxD(inch)
24.8x31.5x11.8
Net Weight(kg)
9
General Specifications
Cooling Capability
17742
Heat Function
Y
Colour
White
Horse Power
1.5 HP/1 HP
Power(ph Hz V)
1/50/220
Cooling Power Consumption (kW)
1.34 (2 units operation)
Cooling Operating Current (A)
6.43 (2 units operation)
Liquid Side Pipe Size(mm inch)
6.35(1/4') x 2
Gas Side Pipe Size(mm inch)
9.52(3/8") x 2
Refrigerant
R410A
Energy Label
-
Wifi Adapter
RB-N103S-G
Warranty
1-year Warranty
Functions
Hybrid Inverter System
Double Clean System
Ultra Pure Filter
Comfort Sleep
Dry Operation
Real time on-off
LCD display Remote Controller
Country of Origin
Country of Origin
Thailand
Manuals
File Model Number Release Date Language File Size
Owner's Manual File Owner's Manual Model Number RAS-M13N4KV-RAS-M10N4KV Release Date 2023/01/01 Language Chinese & English version File Size 1.0MB Download
Catalogue File Catalogue Model Number RAS-M13N4KV-RAS-M10N4KV Release Date 2025/03/18 Language Chinese version File Size 69.0MB Download
